$459,00 (ex. VAT $333,60)
Velotechnic DS1-D hubs are designed around the attributes of strength, stiffness, stability and smoothness to give the best riding experiences while being affordable. Designed & engineered in Singapore, manufactured in Taiwan.
Velotechnic DS2 hubs are designed around the attributes of Strength, Stiffness, Stability and Smoothness to give the best riding experiences while being affordable.
Designed & engineered in Singapore, they are created with our own exclusive molds.
Front hub
The DS2 front hub has a strong 15mm diameter hardened axle while the DS2-D has a massive 17mm diameter thru axle , eliminating flex. The distances & the P.C.D. of the flanges provide wide bracing spoke angles for lateral wheel stiffness and stability. Precise hub adjustment is easily achieved with the pre-load threaded collar to optimise bearing stiffness. Lastly, the DS front hub shell is thicker for added strength and stiffness.
Rear hub
The rear hub takes the brunt of the load so we have designed it to easily handle heavyweight riders, high torque, and different huge forces, both laterally & radially. Many “weight weenie” hubs lack the properties of our hubs, which possess the key performance properties of Strength, Stability, Stiffness & Smoothness
Specifications
Front Hub
| Centre to flange (L/R mm) | L23.5 / R37.0mm |
| Flange Diameter (PCD – L/R mm) | L54.5 / R46.0mm |
| Weight (g) | 157g |
Rear Hub
| Centre to DS flange (mm) | 20.4mm |
| Centre to NDS flange (mm) | 36mm |
| DS Flange Diameter (PCD – mm) | 57.0mm |
| NDS Flange Diameter (PCD – mm) | 46.0mm |
| Weight (g) | 265g |
| Front axle type | 12mm through axle |
|---|---|
| Rear axle type | 12 x 142mm |
| Cassette type | Shimano 11s, SRAM XDR |
Related products
-
Venn Var 45 TCD filament wound tubeless clincher road disc brake bike carbon rim
$496,00 (ex. VAT $396,80) -
Velotechnic DS2 road hubs – rim brake
$416,00 (ex. VAT $332,80) -

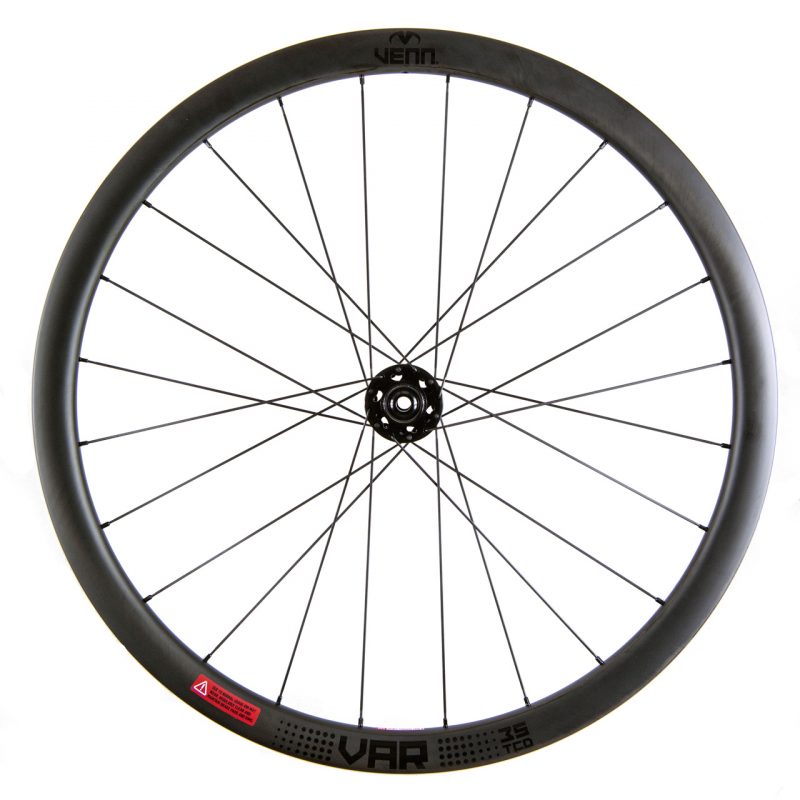

Venn Var 35 TCD filament wound tubeless clincher road disc brake bike carbon wheels
