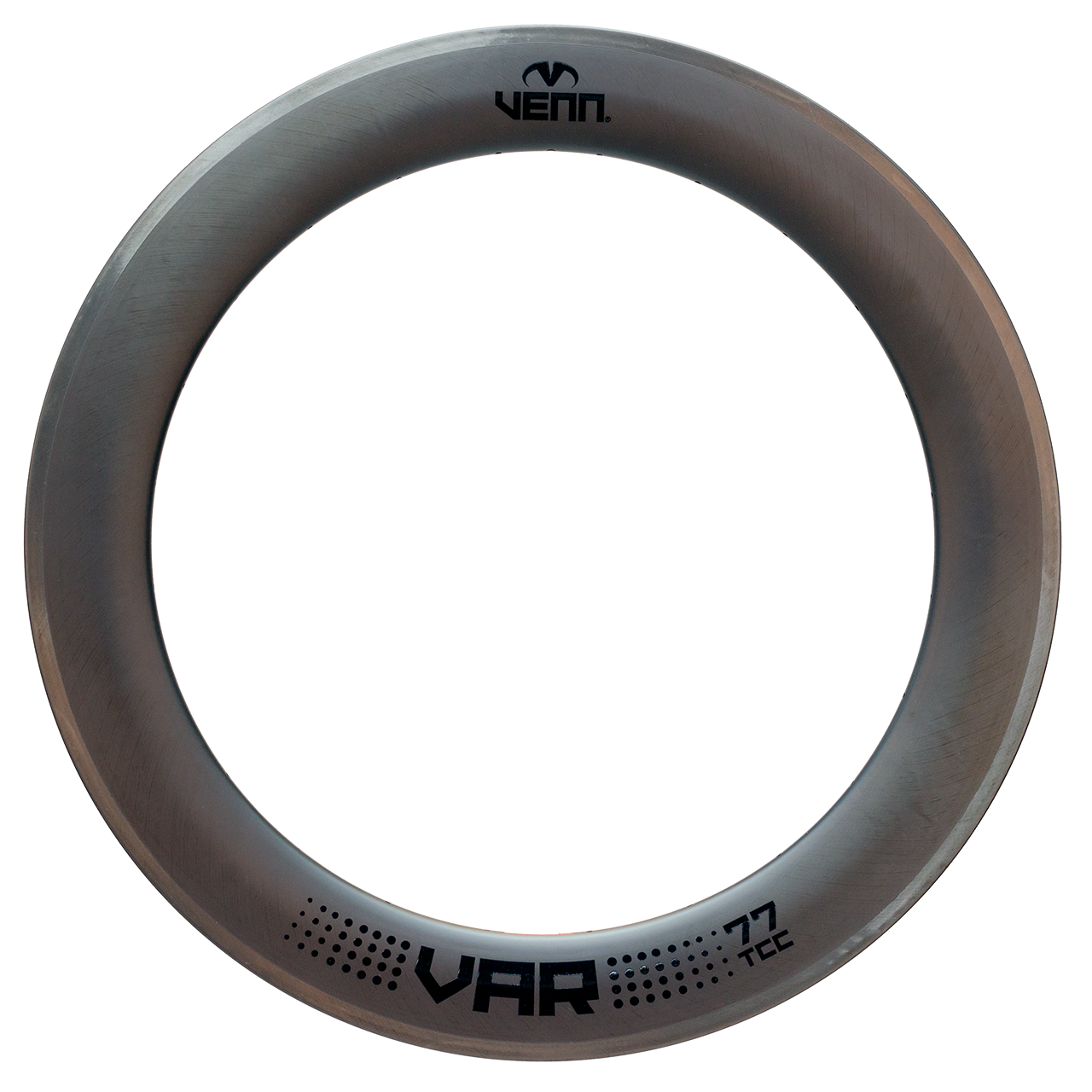

Venn Var 77 TCC filament wound rim brake tubeless clincher deep section carbon rimNovember 21, 2018
Venn Var 35 TCD filament wound tubeless clincher road disc brake bike carbon rimNovember 21, 2018
Venn Var 45 TCD filament wound tubeless clincher road disc brake bike carbon rim
Free shipping worldwide
All orders are shipped in 1-3 business days.
Hassle Free Returns
No questions asked, 14 days from receipt return policy.
SSL Enabled Secure Checkout.
$450,00 (ex. VAT $360,00)
Parallel filament wound tubeless clincher carbon rims. 45mm profile.
The profile of the Var 45 TCD road disc brake bicycle 45mm carbon rim was developed to offer the best aerodynamics when used with 25-28mm tires.
The external width of 30mm optimizes the airflow in combination with wider tires, while the internal width of 21mm ensures that the wider tires achieve a stable, round profile. The resulting aerodynamic performance exceeds that of generic 50mm+ rim based wheels in some conditions while offering superior handling.
The rim width also means that the rims are laterally very stiff while the filament winding process ensures that the rims remain vertically compliant due to the 45 degree fiber layup bias. The combination of these features results in very fast, safe handling carbon wheels that can be used in any conditions.
VAR filament winding process utilises slit tape towpreg to accurately lay up the carbon fiber in an automated, computer controlled process.
The use of preimpregnated carbon fiber tape allows us to use the latest resins that offer the optimal blend of toughness and impact resistance. Var rims can therefore be used in challenging conditions where extended braking periods are expected.
The Var 45 TCD 45mm carbon rim is compatible with clincher, or tubeless tires that when used with a sealant virtually eliminate the inconvenience of having a flat tire away from home, or during a race.
Machine filament wound
30mm external, 21mm internal
450g +/- 15g
|Rider weight limit||
