$1209,00 (ex. VAT $879,20)

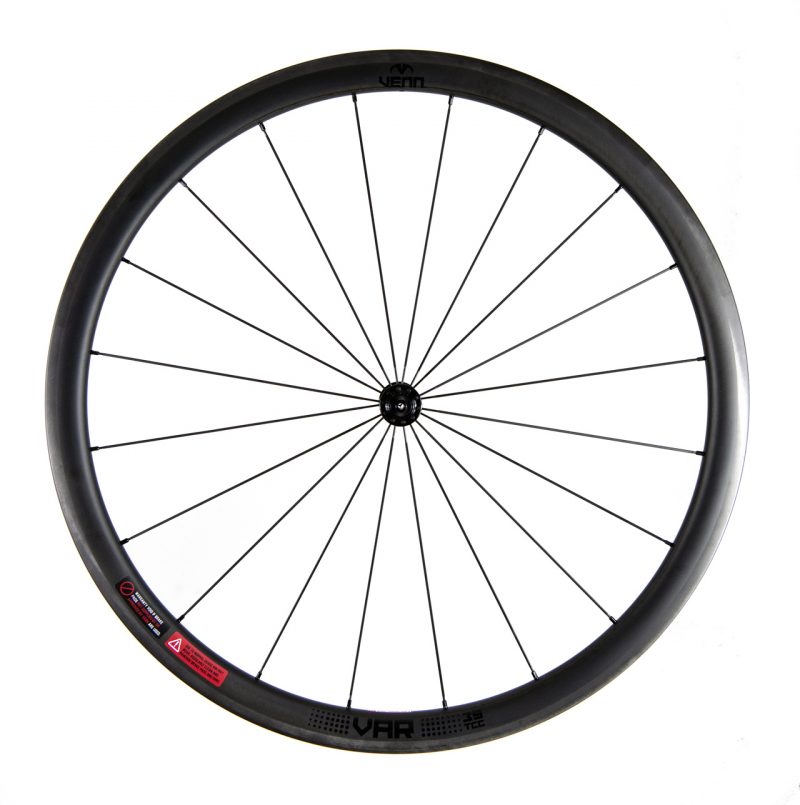

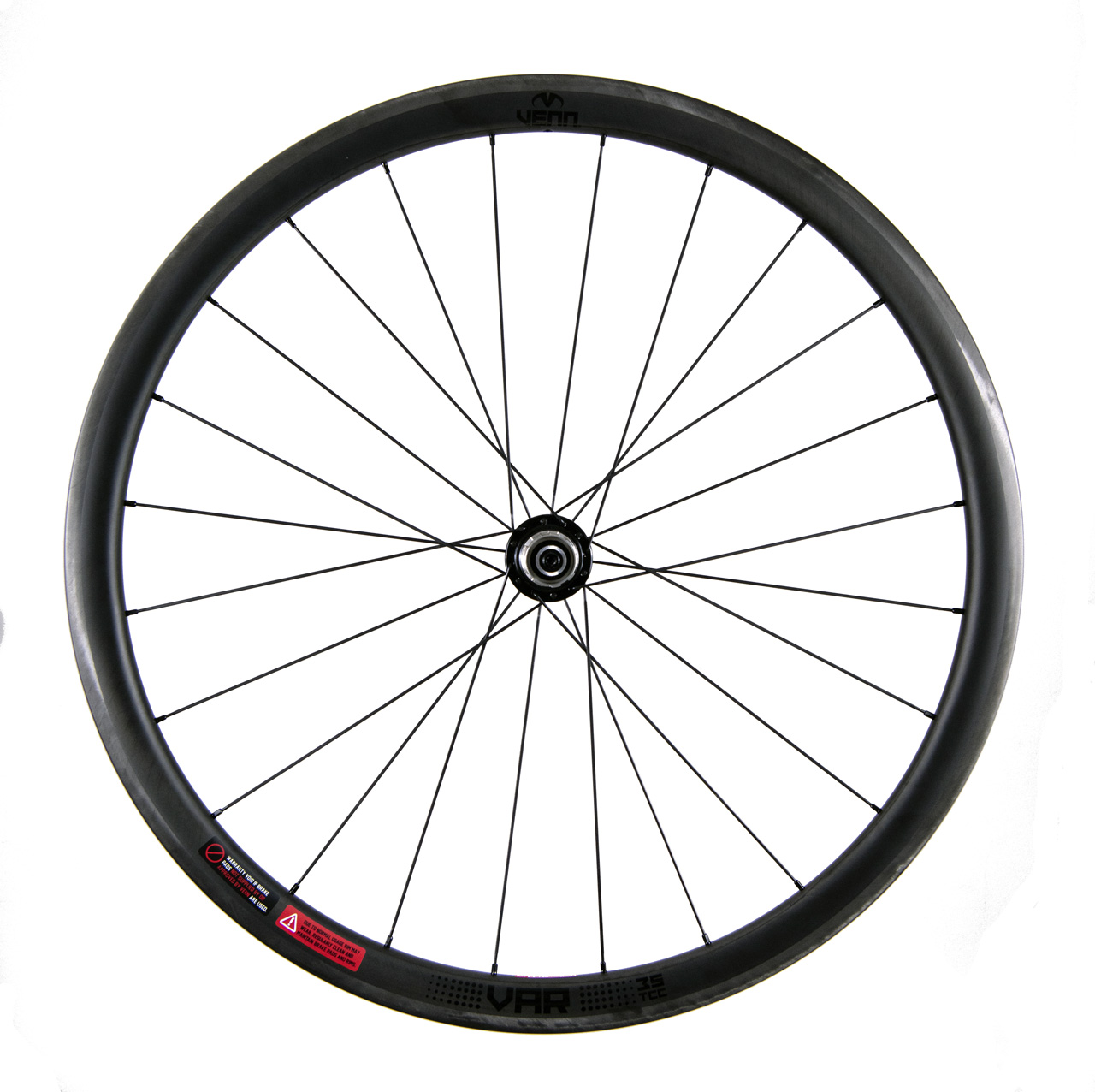

Parallel filament wound full carbon tubeless clincher wheelset. 35mm profile, rim brake.
The profile of the Var 35 TCC rim brake road carbon rim was developed to offer the best aerodynamics when used with 25-28mm tires.
The external width of 30mm (28mm at the brake track) optimizes the airflow in combination with wider tires, while the internal width of 21mm ensures that the wider tires achieve a stable, round profile. The rim width also means that the rims are laterally very stiff while the filament winding process ensures that the rims remain vertically compliant due to the 45 degree fiber layup bias. The combination of these features results in very fast, safe handling wheels that can be used in any conditions.

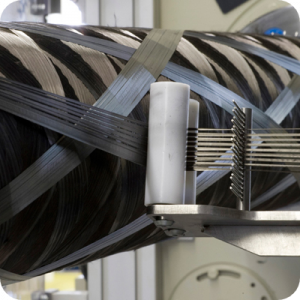

VAR filament winding process utilises slit tape towpreg to accurately lay up the carbon fiber in an automated, computer controlled process.
The use of preimpregnated carbon fiber tape allows us to use the latest resins that offer the optimal blend of high glass transition (Tg) temperature exceeding 240° C in testing , toughness and impact resistance. Var rims can therefore be used in challenging conditions where extended braking periods are expected.
The wheels are compatible with clincher, or tubeless tires that when used with a sealant virtually eliminate the inconvenience of having a flat tire away from home, or during a race.

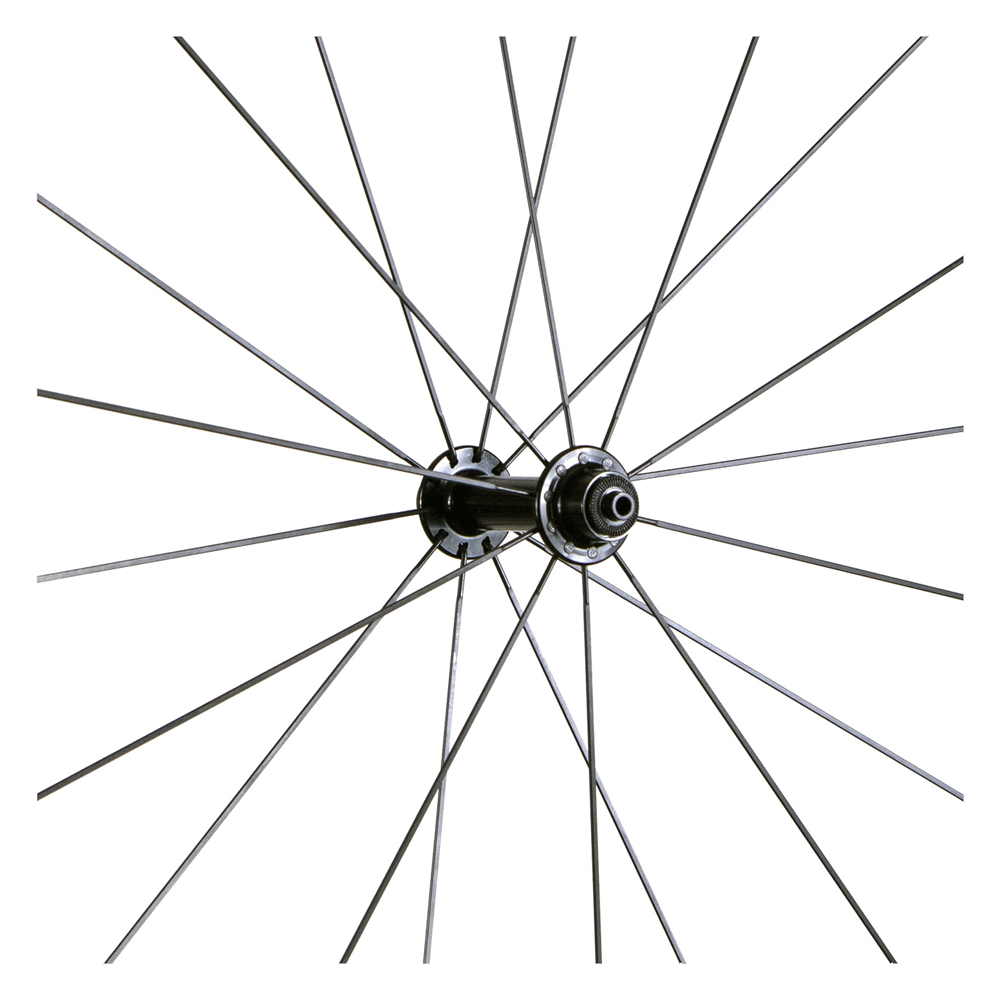

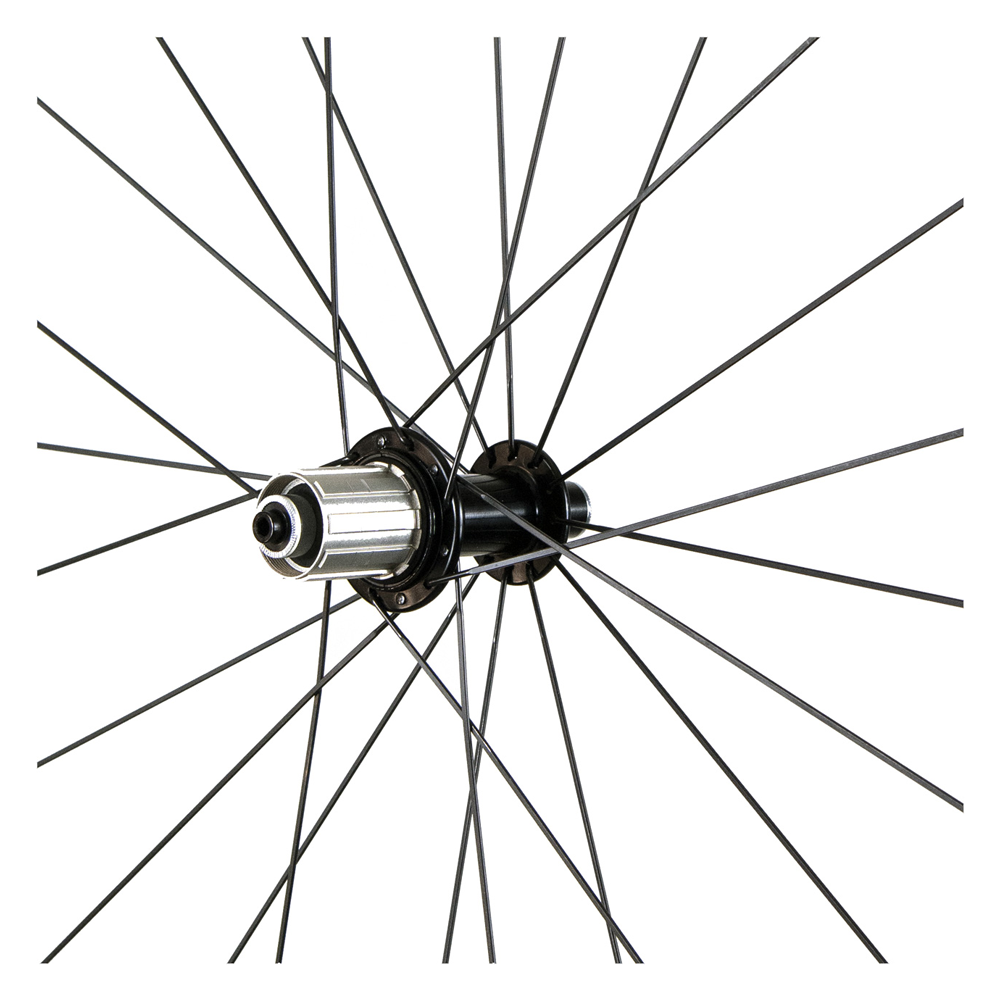

Venn Rea db hubs feature a cold forged, CNC machine hub shell with a low drag 24 pawl engagement freehub rolling on Enduro bearings that feature dual lip seals to keep the water and dirt out, and grease in ensuring better performance even in bad weather.
Interactive aerodynamics data
Rim profile
Carbon filament winding
| Brand | Venn |
|---|---|
| Manufacturing technology | Machine filament wound |
| Brake compatibility | Rim |
| Brake track width | 28mm |
| Tire type | Tubeless/clincher |
| Size | 29", 700c |
| Width | 30mm external, 21mm internal |
| Depth | 35mm |
| Hubs | Venn Rea S cold forged, machined shell |
| Bearings | 2 x 699 Enduro, 3 x 6802 Enduro, 1 x 6902 Enduro |
| Engagement | Double row, 3 pawls, 15 degrees, low drag |
| Special features | Heavy duty hubs, environmental sealing |
| Spokes | 20/24 Pillar PSR 1422 |
| Nipples | Sapim alloy |
| Rider weight limit | 110kg |
| Wheelset weight | 1590g |
6 reviews for Venn Var 35 TCC filament wound tubeless clincher rim brake carbon wheels
You may also like…
-

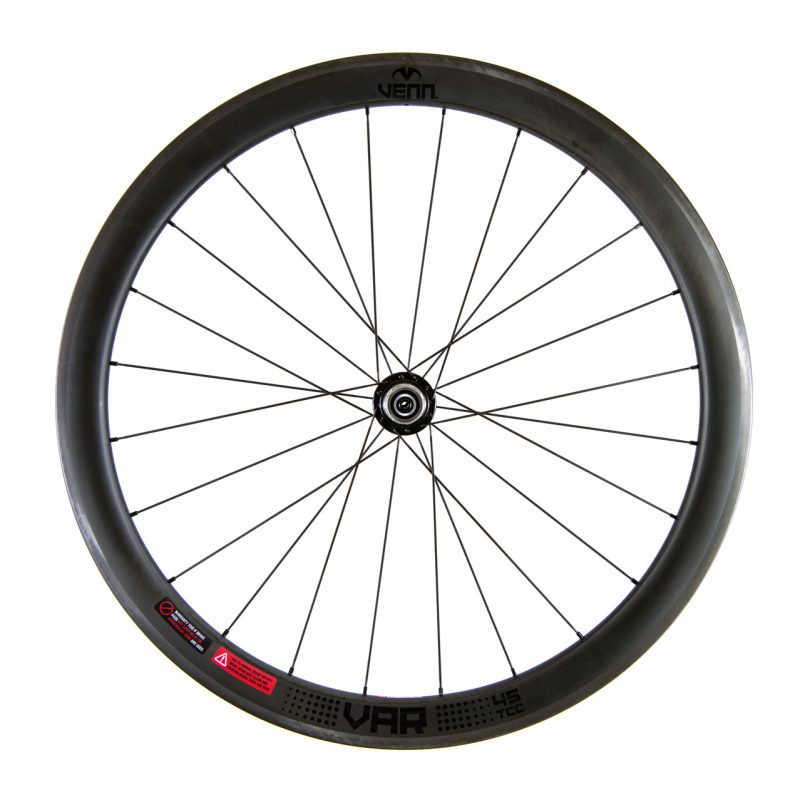

Venn Var 45 TCC filament wound tubeless clincher rim brake bike carbon wheels
$989,00 (ex. VAT $791,20)
Related products
-

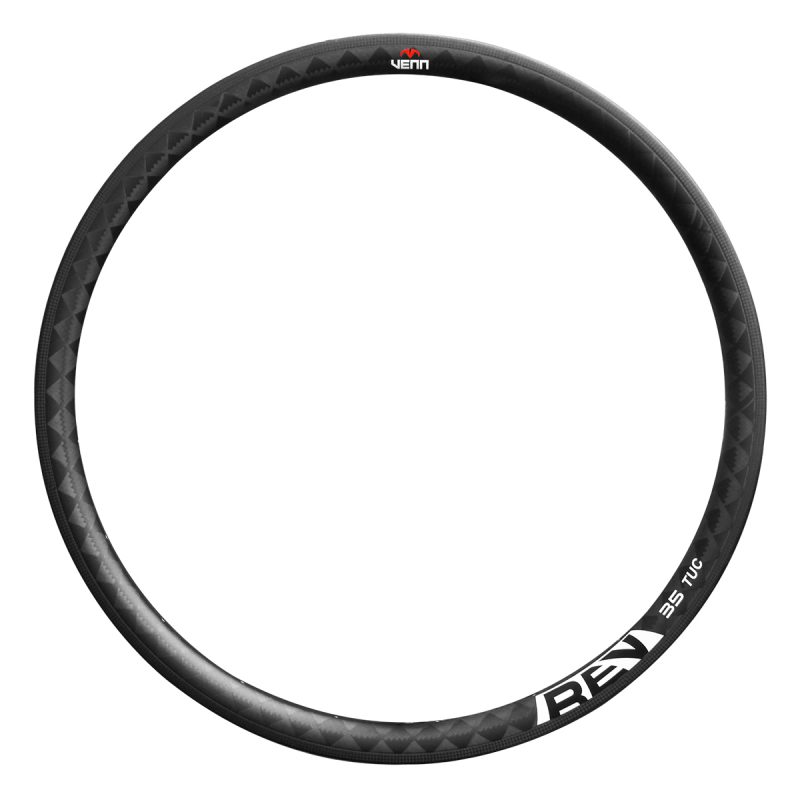

Venn Rev 35 TUC filament wound tubular carbon rim
$285,00 (ex. VAT $228,00) -
Venn 55 TCC SL – 55mm rim brake carbon rim
$373,00 (ex. VAT $298,40) -

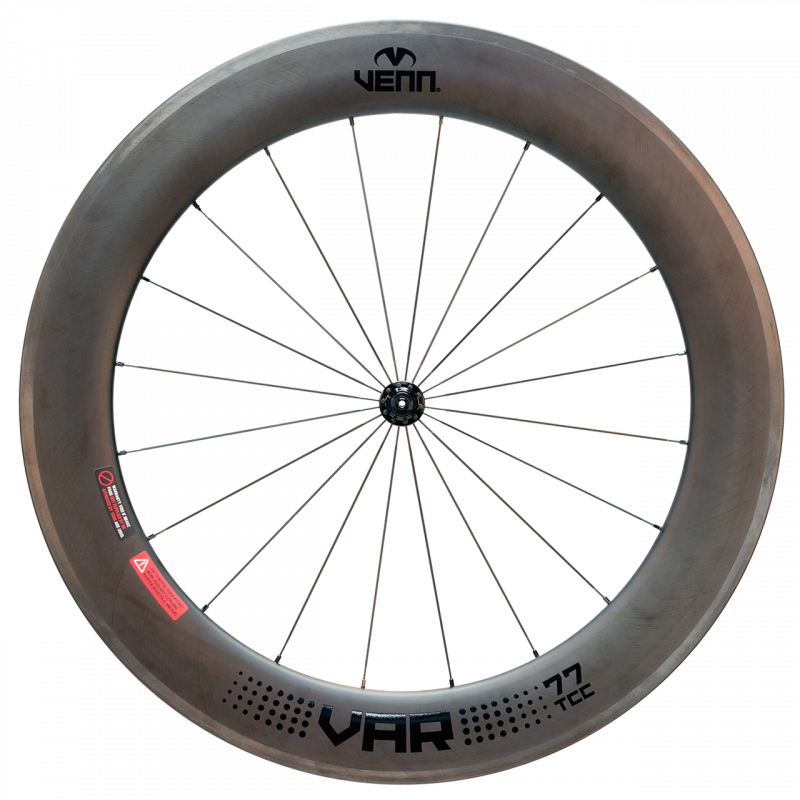

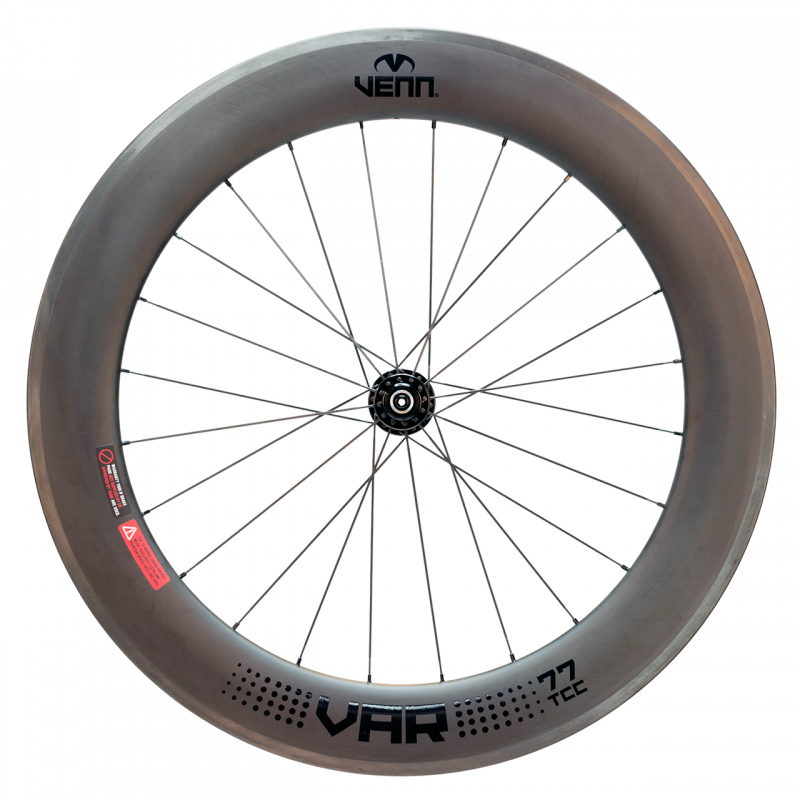

Venn Var 77 TCC filament wound tubeless clincher rim brake bike deep section carbon wheels
