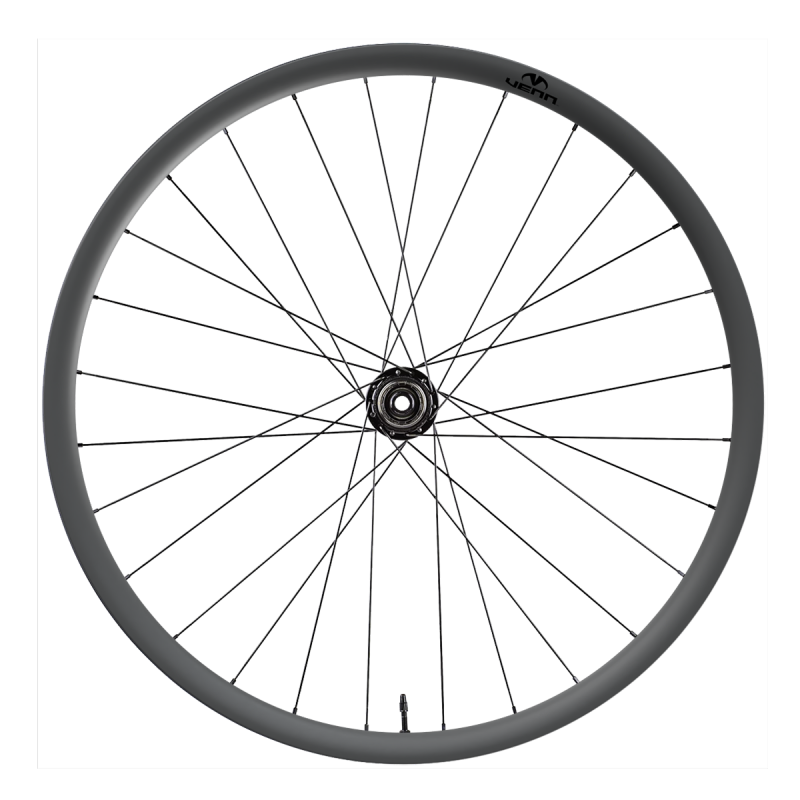

Venn 309 THL hookless disc brake gravel carbon wheels
€1169,00 – €2283,00 (ex. VAT €839,20)
Filament wound full tubeless or clincher carbon wheels for gravel bikes and wide tires, 40mm profile. Disc brake.
100% hand made in the UK
Built by hand by a professional carbon wheel builder in the UK
All orders are shipped in 7-21 business days
SSL enabled secure checkout
The Venn 309 THL hookless disc brake 25mm deep with 29mm internal width gravel carbon wheels are designed for ultimate versatility on and off road
The 25mm profile and 29mm internal width ensure perfect handling and ability to securely traverse rough terrain, or less than perfect surfaces wherever the road may take you.
The 4th generation filament winding process utilises slit tape towpreg to accurately lay up the carbon fiber in an automated, computer controlled process.
The use of preimpregnated carbon fiber tape allows us to use the latest resins that offer the optimal blend toughness and impact resistance. The Venn 4525 TCD carbon wheels can therefore be used in challenging conditions where extra toughness is of great benefit.
The Venn 309 THL 25mm gravel carbon wheels are compatible with clincher, or tubeless tires that when used with a sealant virtually eliminate the inconvenience of having a flat tire away from home, or during a race.
The wheels can be assembled with a very wide choice of hubs. We offer DT Swiss and Bitex as standard, but other brands and speciality hubs are also available
It is internally wider (29mm vs 25mm) which better supports wider tires. This ensures that a wide tire (for example a 40mm tire) obtains a more rounded shape, and that it is more stable on the rim so that it rolls less when cornering at higher speeds.
Yes, the wheels are built with 28 spokes as standard allowing combined road, gravel and XC MTB use.
Carbon filament winding
|Rider weight limit||
Bitex BX106 12 x 100/12 x 142, Bitex BX312 12 x 100/ 12 x 142, Carbon-Ti X 12 x 100/12 x 142, Chris King R45D 12 x 100/12 x 142, DT Swiss 350 Ratchet CL SP 24h
|Front axle type||
QR skewer, 12mm through axle, 12mm Boost, 15mm through axle, 15mm Boost
|Rear axle type||
12 x 135mm, 12 x 142mm, 12 x 148mm Boost, QR skewer
12k Twill, 3k Twill, Filament wound, UD

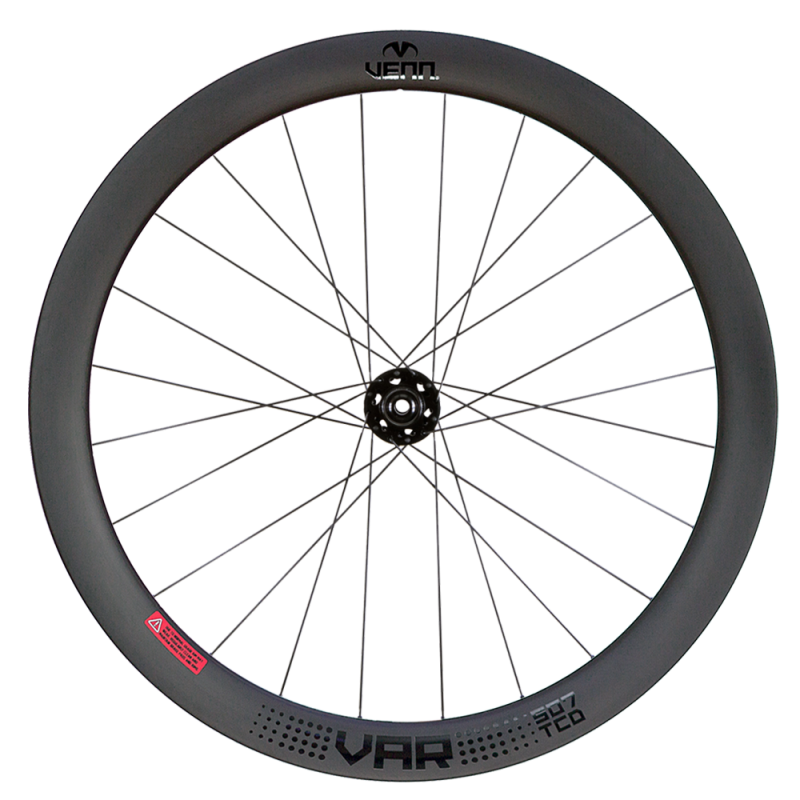

Venn Var 507 TCD SS road disc brake bike carbon wheels
