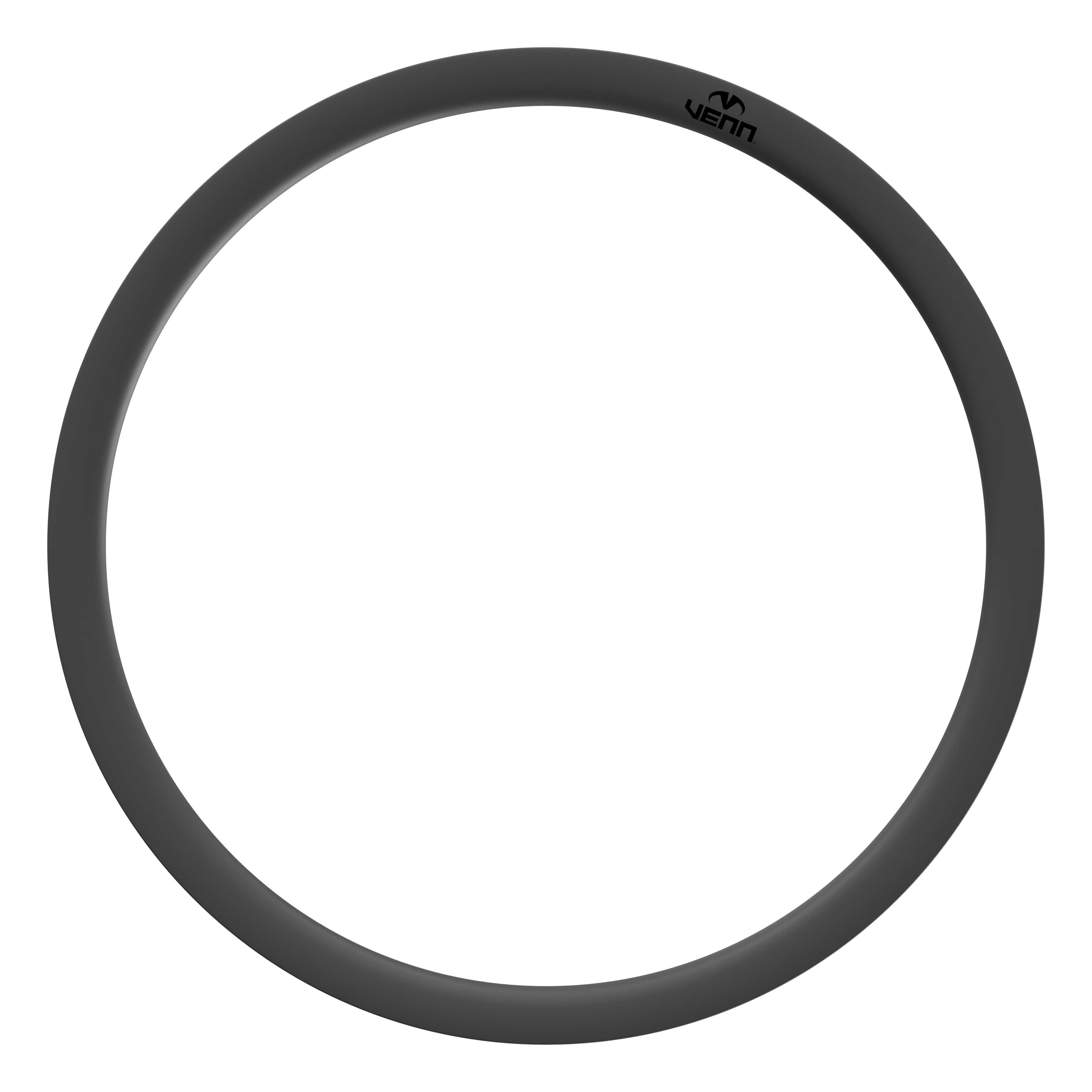

Venn 35 TCD SL – 35mm disc brake carbon rimAugust 16, 2022

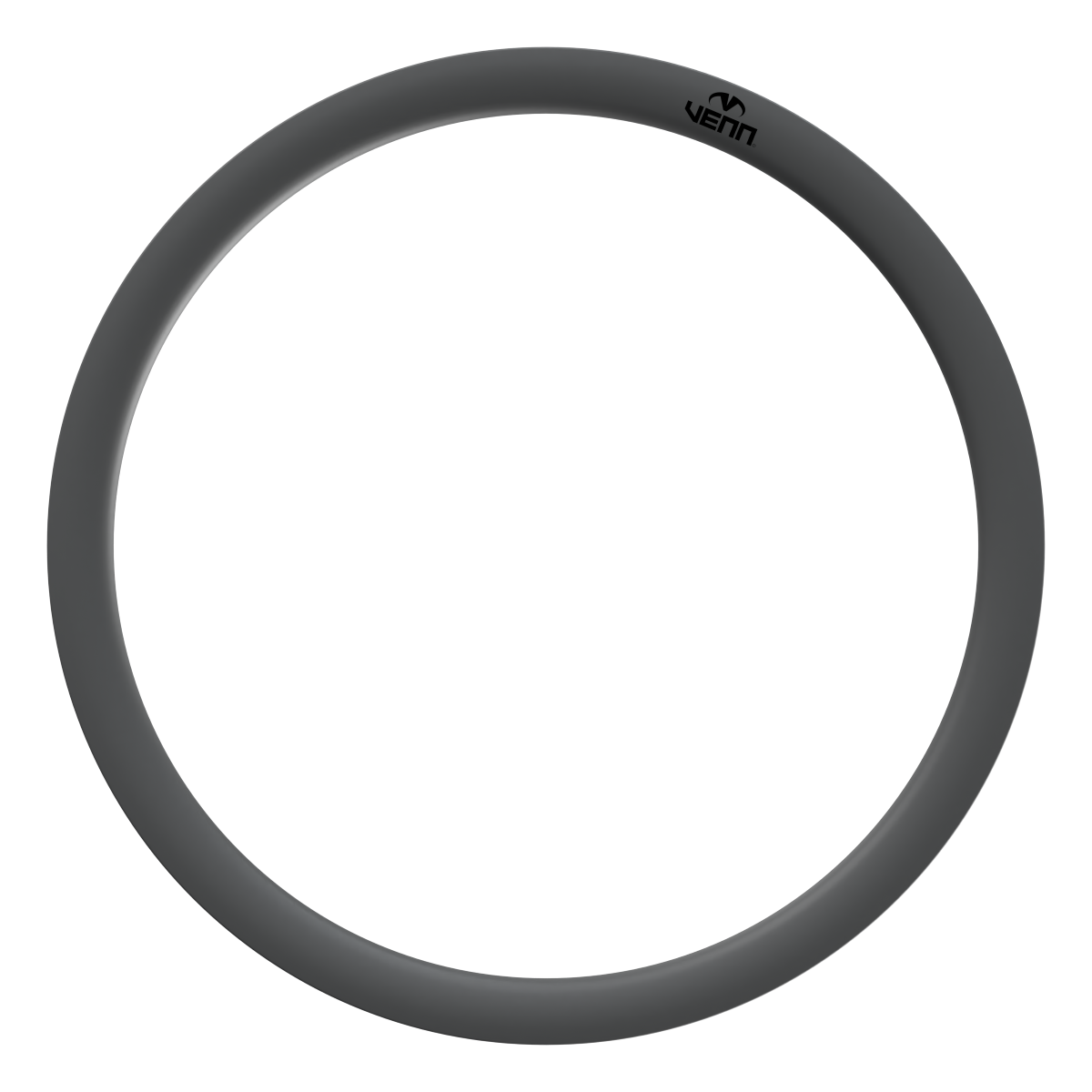

Venn 4029 TCD – 40mm gravel carbon rimAugust 18, 2022
Venn 3029 TCD – 30mm gravel carbon rim
Free shipping worldwide
All orders are shipped in 1-3 business days.
Hassle Free Returns
No questions asked, 14 days from receipt return policy.
SSL Enabled Secure Checkout.
$383,00 (ex. VAT $271,20)
Filament wound tubeless, or clincher carbon rim gravel bikes, 30mm profile. Disc brake.
The Venn 3029 TCL mm disc brake gravel carbon rim is a lightweight rim suited for gravel bikes or road disc bikes with wide tires
Disc brake rim for gravel or wide tire use. This rim is available in two manufacturing methods: high performance hand layup and our 4th generation automated filament winding process.
Hand layup allows us to reinforce just the parts of the rim that are exposed to the highest loads and thus minimising the rim weight, while filament winding ensures that your rim has the highest structural performance that is achievable using carbon fiber – all fibers are laid up precisely and under constant tension.
The 4th generation filament winding process utilises slit tape towpreg to accurately lay up the carbon fiber in an automated, computer controlled process.
The use of preimpregnated carbon fiber tape allows us to use the latest resins that offer the optimal blend of toughness and impact resistance.
CTL SL hand layup carefully positions the carbon fiber reinforcements only where needed
By reinforcing only the key sections of the rim we are able to manufacture very reliable but also very lightweight carbon rims.
The Venn 3029 TCD carbon rim is compatible with clincher, or tubeless tires that when used with a sealant virtually eliminate the inconvenience of having a flat tire away from home, or during a race.
We can assemble your set of carbon wheels using hubs of your choice.
Carbon filament winding
Handmade CTL, Machine filament wound

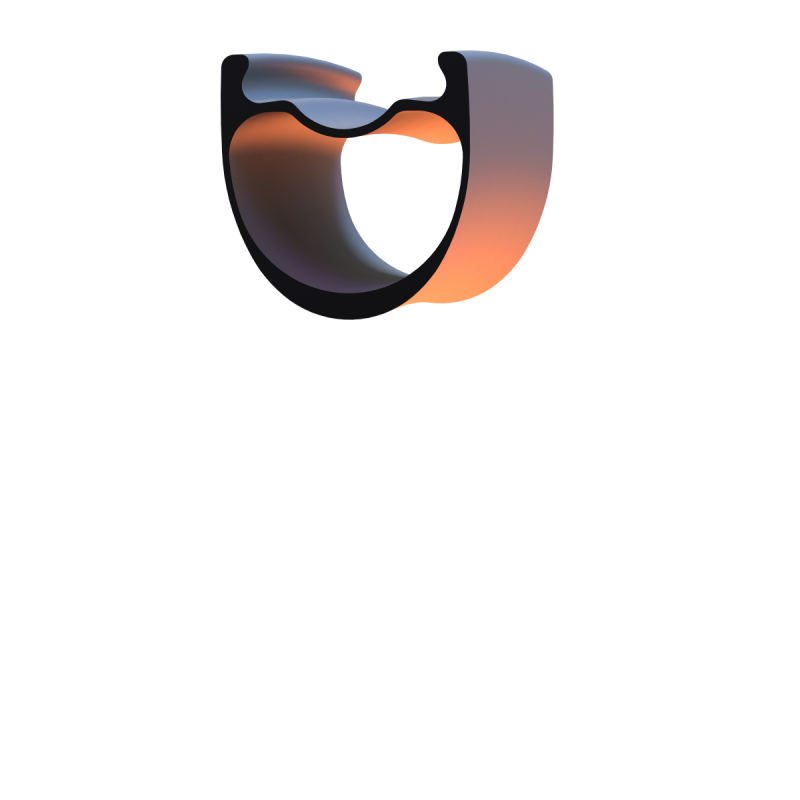

31mm external, 22mm internal
405g +/- 15g
|Rider weight limit||
28 holes, 24 holes
